A new high-pressure flowmeter by Titan for refrigerant fluids

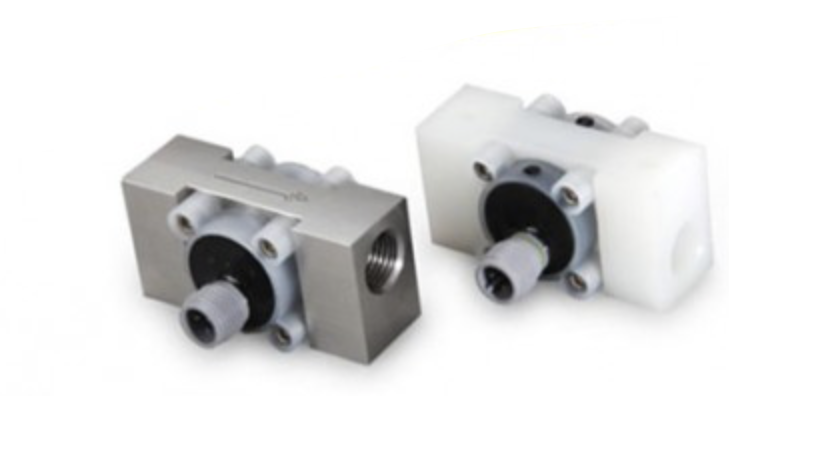

The new high-pressure Series 900 flowmeters by Titan (courtesy of Titan Enterprises)

The new high-pressure Series 900 flowmeters by Titan (courtesy of Titan Enterprises)

US-based Titan Enterprises expanded its Titan 900 series with a new high pressure flowmeter, featuring new refrigerant flow sensors adapted with steel and reinforced polymer components, for a pressure rating of 40 bar.
This product is specifically designed for measuring the low viscosities commonly encountered with volatile refrigerant fluids measured in a liquid form, thanks to its low-inertia turbines.
The new flowmeter is based on the standard 900 series turbine flow sensors, which mix high performance and competitive pricing, and comes in a choice of body materials, making it ideal for metering a range of aggressive chemicals, such as ultra-pure water.
The standard inlet for the new Titan 900 Series turbine flowmeter is ¼“ BSPF although alternatives for OEM use are available. The bearings are made of sapphire for durability and reliability, while the body is either PVDF or 316 stainless steel and the O-ring seal is Viton as standard.
