New electric actuators by GF Piping Systems

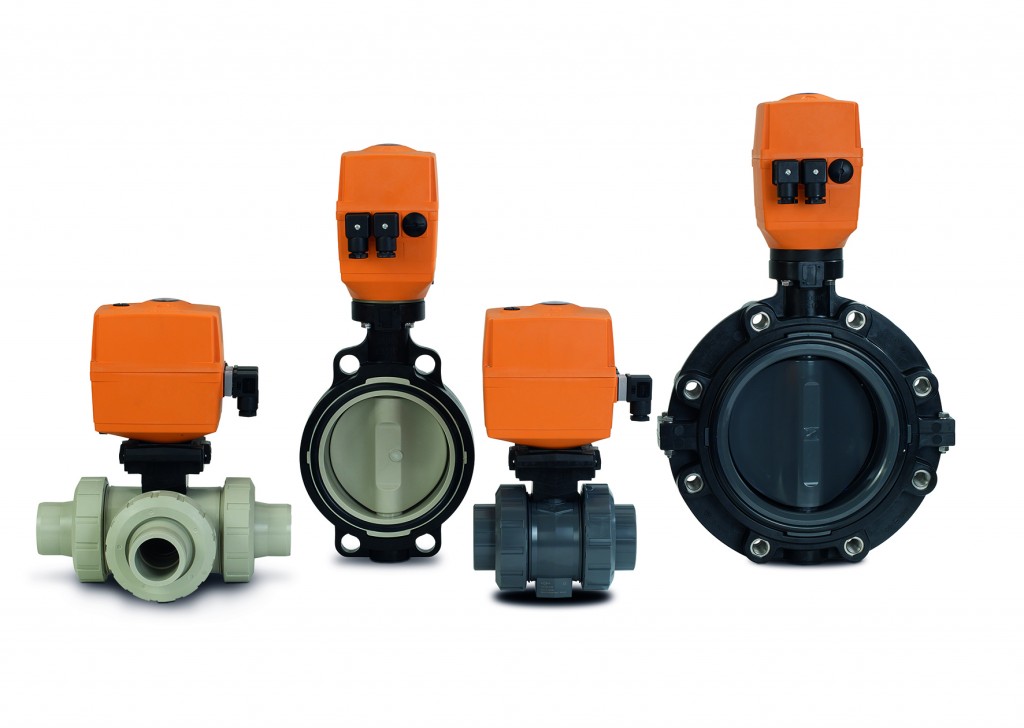

The EA25-250 actuators by GF Piping Systems

The EA25-250 actuators by GF Piping Systems

GF Piping Systems introduced the new electric actuators type EA 25-250.
These new actuators have an integrated color LED which, even in difficult lighting conditions and with a closed cover, gives highly visible feedback as to the position of the valve in the process, as well as the operating status of the actuator.
Using four pushbuttons, the end and center positions can be adjusted quickly and without tools. Even settings for 3-way valves can easily be adjusted including a middle position. The LED color combinations and 360° position detection combined with an internal smart display make operation easy to understand.
Thanks to an integrated heater, neither condensation nor ice build-up will occur inside the housing of the type EA25-250 electric actuators. The user can manually set the required starting temperature according to the ambient conditions; thereby these electric actuators ensure maximum safety and functionality even under difficult operating conditions.
In addition, the entire range of accessories has been improved upon, from the monitoring board for the on/off operation to the positioner for continuous control of the actuator. The new fail-safe return module, for moving the motor and positioning the valve into a safe position in the event of power outage, can now be easily inserted into the actuator housing and requires no additional wiring. Another new feature is the option of upgrading the actuator for integration into a Profibus network. This gives you an extremely compact and powerful all-plastic, corrosion resistant, actuator to control your system.
The robust PP-GF housing makes these actuators not only perfectly suited for plastic valves, but with their standardized interface, and choices of torque they are also compatible with many commercially available ball and butterfly valves including metal ones. GF Piping Systems offers actuators in a range of 25Nm, 45Nm, 120Nm and 250Nm peak torque.
