GEA introduces a new seat seal to its food-grade TEFASEP® series

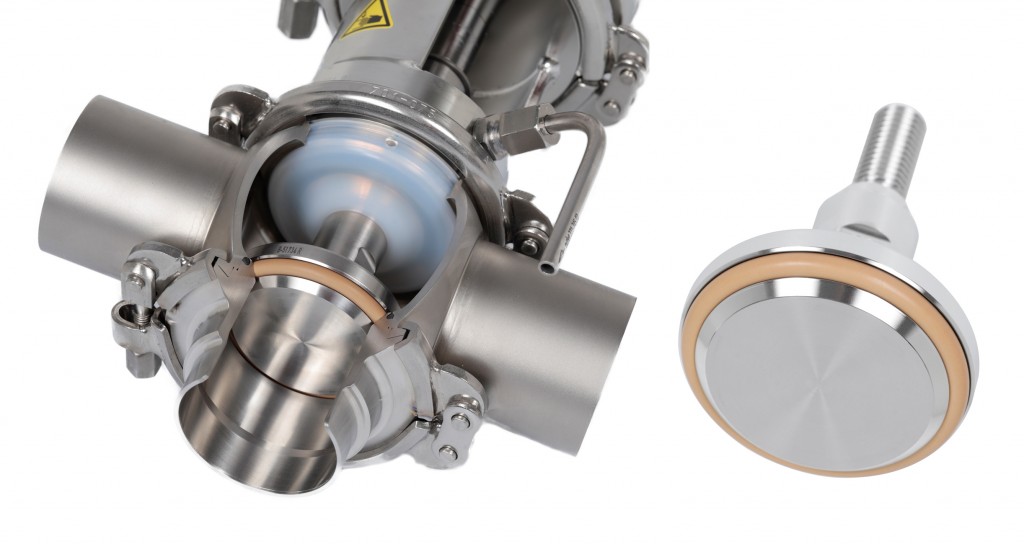

The TEFASEP® gold valve with a detail of its brand-new seat seal

The TEFASEP® gold valve with a detail of its brand-new seat seal

GEA is celebrating the launch of the TEFASEP® gold valve seat seal at drinktec 2017, consisting of a specially developed thermoplast that is so resistant to temperature and chemicals that it can withstand sterilization processes of 121 °C up to 160 °C which is vital for highly hygienic or aseptic processing of, for example, UHT milk, baby food and soft drinks. Another advantage of TEFASEP® gold is that it can easily be applied in traditional ultraclean processes with simple hot cleaning without sterilization. Valves can therefore be coordinated better with customer processes – from ultraclean to aseptic.
The new seal is designed for the D-tec® range of rod membrane valves that stand out because of their very high contamination protection.
The new TEFASEP® gold valve seat seal differs from the tried and tested TEFASEP® model in appearance because of its bronze gold colour and is available for all valve types in the D-tec® range. The material meets the international standards of the FDA (21 CFR § 177.1550), the EC (1935/2004 and 10/2011) and the 3A standard (numbers 20 – 24). In addition, TEFASEP® gold complies with USP standards (USP Class IV –121 °C) and is thus suitable for pharmaceutical and biotechnology applications.
