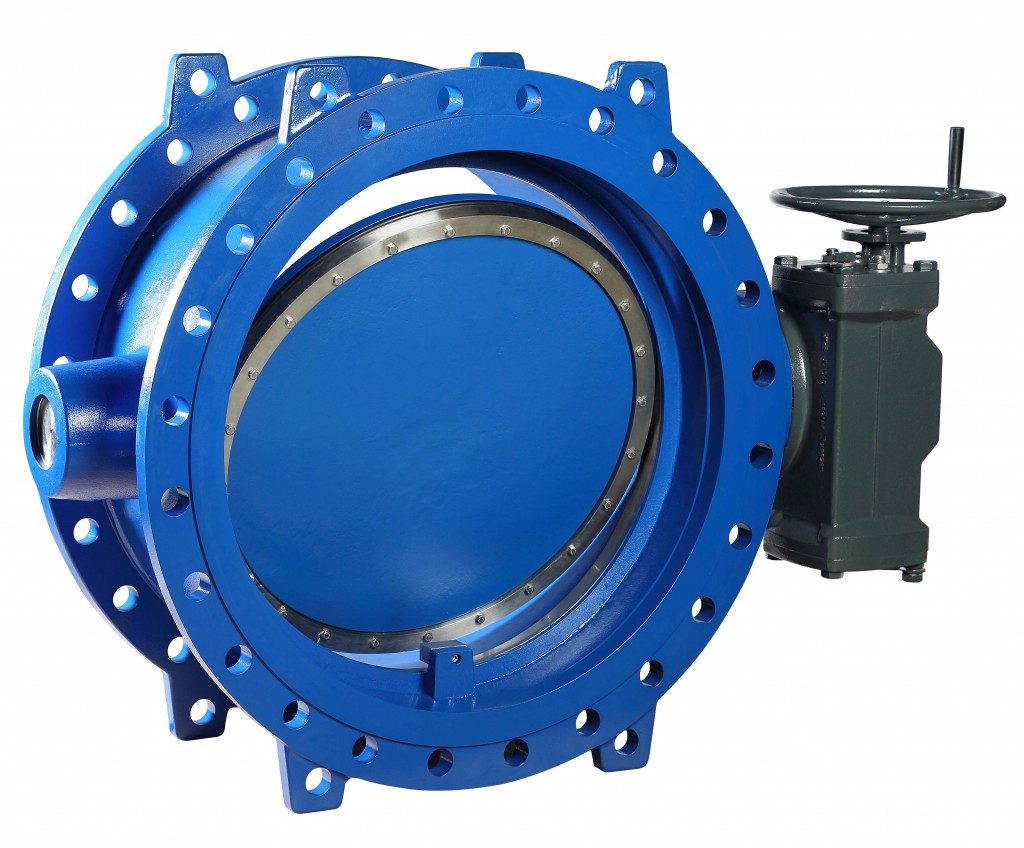

The valve is available with the face-to-face lengths specified in the EN 558/ISO 5752, Series 14, standard and in nominal sizes DN 300 to DN 2000. The maximum operating pressure is 16 bar, the standard fluid temperature should range between 0 and 85 °C, while the valve discs and bodies are made from epoxy-coated EN-GJS-400-15.
Two stainless steel stems hold the valve disc in position. Torque transmission from the actuating stem to the valve disc is ensured by a keyed connection. Neither of the stems come into contact with the fluid as they are surrounded by sealed protective sleeves. This keeps them dry and, in conjunction with the stainless steel reinforced PTFE bearing bushes, ensures extended, trouble-free service.
The flanged body with raised faces features integrally cast support feet which facilitate valve handling and storage. Thanks to the standardised top flanges to ISO 5211, the valve combines with a wide range of manual, electric, pneumatic and hydraulic actuators. The type series is approved for drinking water applications (DVGW, WRAS and ACS).
